背景：

日常项目中的消息推送，im等需求会使用到websocket，项目对于高可用和扩展性要求比较高的时候就必须使用一些HA和负载均衡方案，本文将基于keepalived和nginx构建高可用websocket部署。

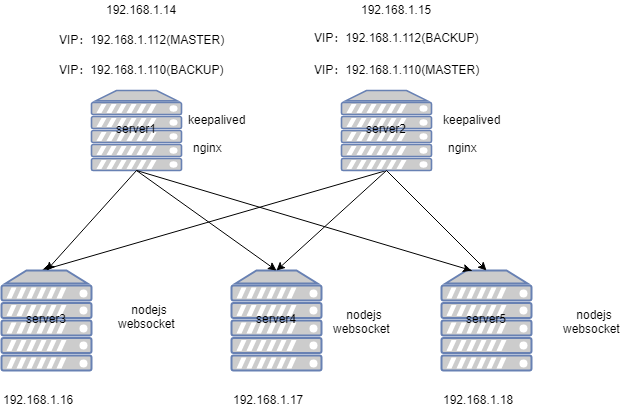

部署架构图：

部署架构

软件配置：

server1：

keepalived配置

global_defs {
}
vrrp_script chk_nginx {
       script "killall -0 nginx"     # cheaper than pidof
       interval 2                      # check every 2 seconds
}

vrrp_instance VI_1 {
    state BACKUP
    interface enp0s3
    virtual_router_id 51
    priority 50
    advert_int 1
    virtual_ipaddress {
        192.168.1.110
    }
    track_script {
        chk_nginx
    }

}
vrrp_instance VI_2 {
    state MASTER
    interface enp0s3
    virtual_router_id 52
    priority 100
    advert_int 1
    virtual_ipaddress {
        192.168.1.112
    }
    track_script {
        chk_nginx
    }

}

nginx配置：

    map $http_upgrade $connection_upgrade {
        default upgrade;
        '' close;
    }

    upstream websocket {
        server 192.168.1.16:8010;
        server 192.168.1.17:8010;
        server 192.168.1.18:8010;
        #server 192.168.1.18:8030;
    }

    server {
        listen 8020;
        location / {
            proxy_pass http://websocket;
            proxy_http_version 1.1;
            proxy_set_header Upgrade $http_upgrade;
            proxy_set_header Connection $connection_upgrade;
        }
    }

启动server1的keepalived和nginx

通过ip addr 检查vip是否注册成功

2: enp0s3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 08:00:27:ea:42:a9 brd ff:ff:ff:ff:ff:ff
    inet 192.168.1.14/24 brd 192.168.1.255 scope global dynamic enp0s3
       valid_lft 70455sec preferred_lft 70455sec
    inet 192.168.1.112/32 scope global enp0s3
       valid_lft forever preferred_lft forever

server2：

keepalived配置

global_defs {
}

vrrp_script chk_nginx {
       script "killall -0 nginx"     # cheaper than pidof
       interval 2                      # check every 2 seconds
}
vrrp_instance VI_1 {
    state MASTER
    interface enp0s3
    virtual_router_id 51
    priority 100
    advert_int 1
    virtual_ipaddress {
        192.168.1.110
    }
    track_script {
	chk_nginx
    }

}

vrrp_instance VI_2 {
    state BACKUP
    interface enp0s3
    virtual_router_id 52
    priority 50
    advert_int 1
    virtual_ipaddress {
        192.168.1.112
    }
    track_script {
        chk_nginx
    }

}

nginx配置：

map $http_upgrade $connection_upgrade {
        default upgrade;
        '' close;
    }

    upstream websocket {
	server 192.168.1.16:8010;
    server 192.168.1.17:8010;
    server 192.168.1.18:8010;
	#server 192.168.1.18:8030;
  }

    server {
        listen 8020;
        location / {
            proxy_pass http://websocket;
            proxy_http_version 1.1;
            proxy_set_header Upgrade $http_upgrade;
            proxy_set_header Connection $connection_upgrade;
        }
    }

启动server2的keepalived和nginx

通过ip addr 检查vip是否注册成功

2: enp0s3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 08:00:27:00:0e:6d brd ff:ff:ff:ff:ff:ff
    inet 192.168.1.15/24 brd 192.168.1.255 scope global dynamic enp0s3
       valid_lft 70335sec preferred_lft 70335sec
    inet 192.168.1.110/32 scope global enp0s3
       valid_lft forever preferred_lft forever

server3,server4,server5的应用程序代码：

console.log("Server started at 8010");
var Msg = '';
var WebSocketServer = require('ws').Server
    , wss = new WebSocketServer({port: 8010});
    wss.on('connection', function(ws) {
        ws.on('message', function(message) {
        console.log('Received from client: %s', message);
        ws.send('Server 192.168.1.18  received from client: ' + message);
    });
 });

分别启动3个sever的nodejs程序

    node server.js

通过wscat验证环境:

安装wscat

    npm install -g wscat

使用wscat分别连接两个vip

    wscat -c 192.168.1.110:8020
    wscat -c 192.168.1.112:8020
    wscat -c 192.168.1.110:8020
    wscat -c 192.168.1.112:8020

运行结果如下：

客户端测试

keepalived HA测试

kill server1 nginx进程

    sudo killall -9 nginx

通过ip addr查看ip的漂移

server1:

2: enp0s3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 08:00:27:ea:42:a9 brd ff:ff:ff:ff:ff:ff
    inet 192.168.1.14/24 brd 192.168.1.255 scope global dynamic enp0s3
       valid_lft 60959sec preferred_lft 60959sec
    inet6 fe80::a00:27ff:feea:42a9/64 scope link
       valid_lft forever preferred_lft forever

server2:

2: enp0s3: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 08:00:27:00:0e:6d brd ff:ff:ff:ff:ff:ff
    inet 192.168.1.15/24 brd 192.168.1.255 scope global dynamic enp0s3
       valid_lft 60775sec preferred_lft 60775sec
    inet 192.168.1.110/32 scope global enp0s3
       valid_lft forever preferred_lft forever
    inet 192.168.1.112/32 scope global enp0s3
       valid_lft forever preferred_lft forever

server1关机

结果同上

当server1恢复正常时vip又会改变成初始状态

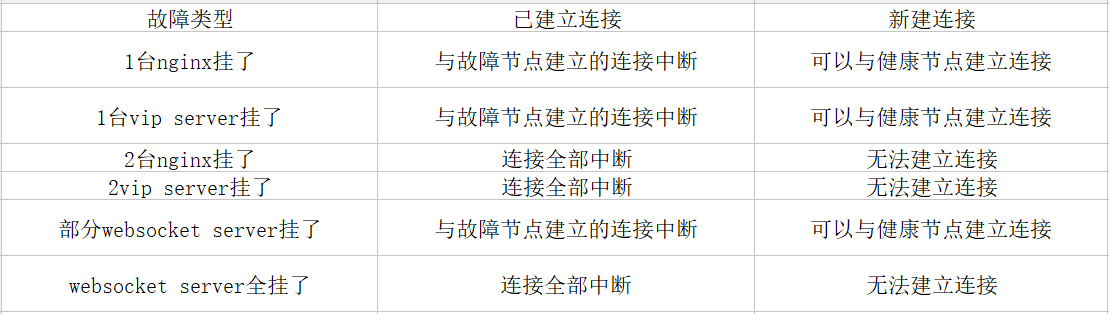

故障对客户端程序的影响

增加websocket server 节点

增加节点只需修改server1和server2的nginx配置添加响应的server配置，然后reload nginx就可以。

增加节点后就会有新的client与新sever建立连接

总结

基于keepalived和nginx的websocket的高可用方案只能实现基本的故障转移，以及负载均衡和扩容，对于整个的应用的高可用的功能的实现websocket客户端应用程序必须实现 重连功能 来解决故障转移过程中的连接的丢失问题。

同时在客户端测试的过程中发现一段时间，server端的连接就会超时自动断开，因此在开发websocket客户端应用程序时要加上 心跳功能。

附录

vrrp协议请求包

vrrp

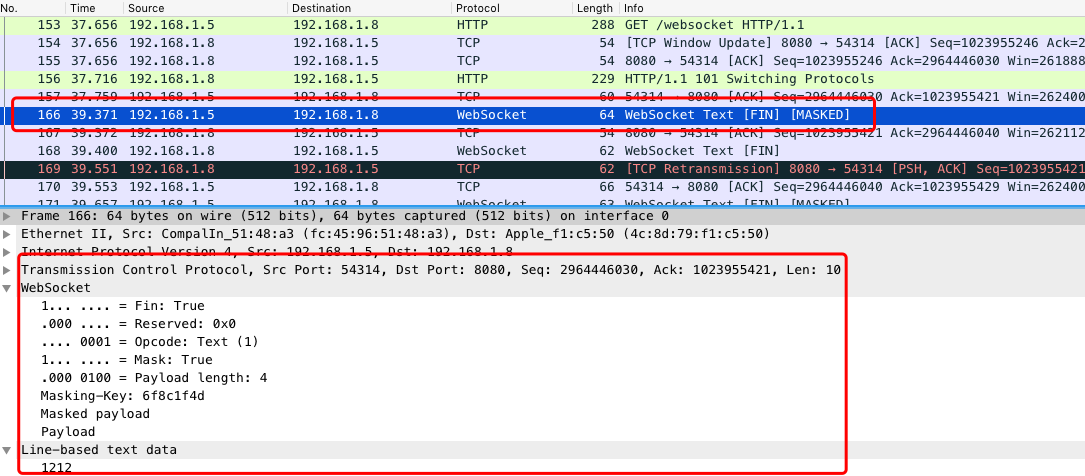

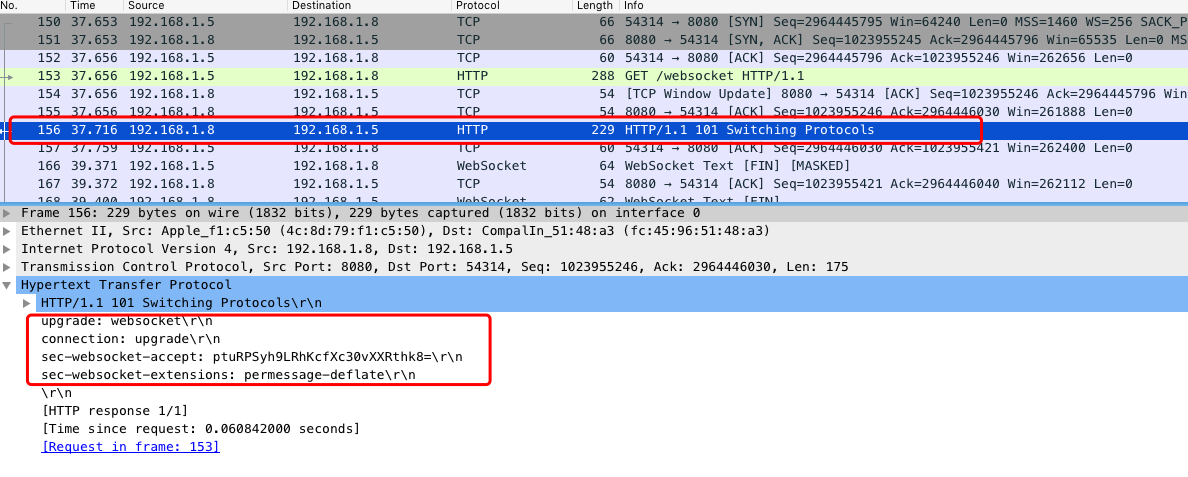

websocket请求建立请求包
